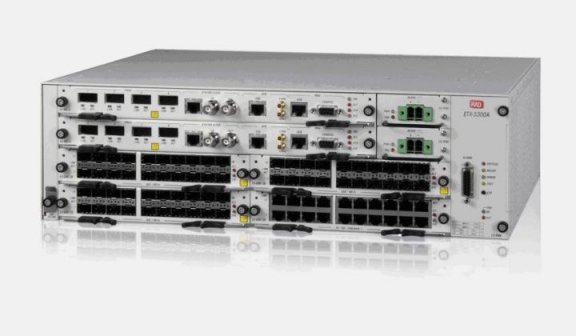

ETX-5300A

The ETX-5300A Ethernet service aggregation platform reduces carrier TCO (total cost of ownership) in delivering aggregated traffic from the access network to the PE (provider edge) over native 10-Gigabit Ethernet links. It combines high capacity aggregation, carrier-grade performance, small form-factor, and low cost per Mbps, thereby enabling cost optimization and freeing up expensive capacity at the PE.

The ETX-5300A offers the highest capacity to size ratio in the market, as well as extremely low power consumption. In addition, it features a comprehensive timing over packet synchronization tool-set, including 1588 Grandmaster capabilities

Contact us for the data sheet.

More Value Now Included! Five-Year Hardware Warranty on RAD Products

• Aggregates SLA-based business Ethernet, legacy TDM and mobile backhaul services

• Ethernet OAM termination and grooming

• 3U device with high port density, delivering a 100 Gbps throughput

• Fully redundant system with modular design:

  • Up to 16 x 10-GbE network/user ports

  • Up to 80 x 1-GbE ports

  • Up to 16 channelized STM-1/OC3 user/network ports

• Carrier Ethernet MEF compliant for:

  • MEF-9, MEF-14: E-Line, E-LAN, E-Tree services; MEF-8

  • MEF-22: mobile backhaul

  • MEF-26: E-NNI

• Ethernet Ring Protection Switching: ITU-T G.8032

• Extensive Sync-E, 1588v2 support, including 1588 Grandmaster

• Extensive TDM pseudowire support: CESoPSN, SAToP, CESoETH (MEF-8), UDP/ IP encapsulation

• Extremely low power consumption; NEBS compliant

• Supported by RAD's performance monitoring solutionsHighest capacity-to-size ratio in market!

• Frees up expensive PE capacity and cuts price per link

• Extensive toolset to deliver and manage SLA-based services with the best traffic management capabilities, OAM and PM

• MEF machine for all services

• 1588 Grandmaster, full suite of Timing over Packet synchronization technologies

• *Always-on *service reliability to support critical applications and legacy services

• Ethernet and TDM pseudowire in a single device

• Enable convergence business, wholesale and mobile network infrastructure

The ETX-5300A aggregates SLA-based wholesale services, Ethernet business services, legacy TDM service emulation, and mobile backhaul. It is also ideal for high capacity grooming of E-OAM and performance monitoring sessions.

The ETX-5300A powerful aggregation platform works opposite the ETX Carrier Ethernet demarcation devices and the IPmux TDM pseudowire gateways. Together, they provide a complete end-to-edge solution that allows carriers and service providers to easily migrate from SDH/SONET to packet technology and to converge voice and data services - both TDM and packet-based - over Ethernet, IP or MPLS networks. A true service delivery platform, the ETX-5300A supports *point-and-click* provisioning and delivers predictable performance with end-to-end SLA assurance.

Supported services include:

• E-Line (EPL and EVPL) for LAN-to-LAN, VoIP and IP-VPN connectivity, as well as for storage and dedicated Internet access

• E-LAN (EP-LAN and EVP-LAN) for multipoint Layer 2 VPN, transparent LAN services and multicast networks

• E-Tree (EP-Tree, EVP-Tree) for rooted multipoint Layer 2 VPNs, broadcast and telemetry networks

• 2G, 3G, HSPA, and LTE transport

The 3U modular system features high port density for space-restricted facilities, delivering up to 100 Gbps of user throughput via the following interfaces:

• Two redundant main cards, each housing four 10-GbE network ports

• Up to four service cards, each housing 20 UTP or SFP 1-GbE tributary ports, four channelized STM1/OC-3 ports, or combinations

The ETX-5300A features non-blocking architecture, allowing wire-speed forwarding for all packet sizes. Designed for high availability and *always-on* service reliability, it includes port and power supply redundancy, with hot-swappable cards and modules, as well as in-service software upgrade capabilities. In addition, it supports carrier-grade service resiliency, as detailed below.

Remote provisioning and traffic management

The ETX-5300A enables efficient handling of multi-priority traffic on a per-flow basis, with ultra-high capacity that enables simultaneous processing of thousands of service flows. The device enables multi-criteria traffic classification, as well as metering, policing and shaping to help carriers rate-limit user traffic according to predefined CIR (committed information rate) and EIR (excess information rate) profiles.

Enhanced quality of service is further supported by multi-level hierarchical scheduling mechanism that combines Strict Priority (SP) and weighted fair queue (WFQ) scheduling, to efficiently handle real-time, premium and best-effort traffic. The ETX-5300A also uses weighted random early detection (WRED) policy for intelligent queue management and congestion avoidance. Packet editing capabilities include 802.1ad Q-in-Q tagging and color-sensitive P-bit re-marking, which ensures metering continuity across coloraware and color-blind Metro networks and WANs.

Hardware-based Ethernet OAM and performance monitoring for SLA assurance

The ETX-5300A features a comprehensive Ethernet OAM suite that includes Ethernet Service OAM (IEEE 802.1ag) and performance monitoring (ITU-T Y.1731).

Featuring ultra-fast, hardware-based processing capabilities, the ETX-5300A performs OAM and PM measurements in nanoseconds with maximum precision, offering the following powerful benefits:

• Immediate detection of loss of continuity (LOC) to ensure sub-50 ms protection switching

• Highly accurate frame loss measurements with live-traffic testing

• Flow-level monitoring enables simultaneous processing of over 1,000 OAM sessions

• Loopback testing at line rate

Its superior processing capabilities make the ETX-5300A an ideal termination and grooming point for Ethernet OAM and performance monitoring sessions.

The ETX-5300A offers advanced SLA assurance tools, including user-defined KPI (key performance indicators) threshold configuration for jitter, latency, packet loss and availability. Other tools include real-time SLA violation alerts and per-flow daily statistics reporting.

Service resiliency and protection

The ETX-5300A offers various tools to ensure five nines (99.999%) availability and sub-50 ms restoration in the event of network outages. These include dual homing link redundancy and Link Aggregation (LAG), as well as 1+1 APS protection on the TDM ports. In addition, the ETX-5300A supports Ethernet Ring Protection Switching (ERPS) per G.8032.

Synchronization and Timing over Packet

Incorporating RAD's SyncToP synchronization and Timing over Packet feature set, the ETX-5300A utilizes standard technologies to ensure highly accurate clock recovery and distribution over both the physical and packet layers:

• Synchronous Ethernet (Sync-E) master and slave clock support per ITU-T G.8261-G.8266, with primary/secondary clock redundancy

• 1588v2 Precision Time Protocol Grandmaster, transparent and slave clock with hardware-based timestamping as well as ToD (time of day) synchronization

• 1 pps, 10-MHz signal phase and frequency synchronization

The ETX-5300A's exceptional SyncToP capabilities also include a built-in input/output clock interface and support for multiple clock domains. These provide exceptional value for wholesale mobile backhaul service providers, ensuring the required service quality - such as +/-16 ppb (parts per billion) accuracy - while eliminating the need for costly dedicated hardware.

Management and security

The ETX-5300A features flexible management capabilities, including local management via an ASCII terminal (RS-232). In addition, remote management can be performed either inband using the network or user ports, or out-of-band using a dedicated management port, while maintaining separation between management and user traffic via the use of VLANs. Advanced FCAPS (Fault, Configuration, Administration, Performance, Security) and diagnostic tools are provided by RADview-EMS, RAD's carrier-class element management system, via an SNMP-based GUI.

The ETX-5300A also supports a variety of access protocols, including CLI over Telnet, SNMP, Web server, and TFTP. Incorporated security features include Secure Shell (SSH), Web-based Secure Socket Layer (SSL), SNMPv3, RADIUS and Terminal Access Controller Access-Control System (TACACS+), as well as management access control list (ACL).
